V00602S (V00603S)
Your Price
$0.000
MSRP
$6.380
Out of stock
SKU
V00602S

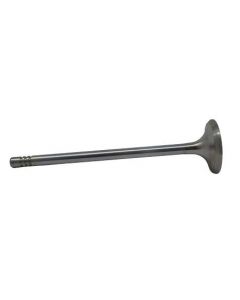

Exhaust Valve
Stellite Seat
Case / Cummins / Komatsu Engine Valve
| Length | Stem Diamter | Head Diamter |
| 7.063 | .4505 | 1.870 |
Dimensions:
| Head Diameter | Overall Length | Seat Angle | Stem Diameter | Grooves | Tip Length |
| 1.870 | 7.063 | 30 | .4505 | 2 | .401 |
Heavy Duty Applications:
| Make | Liter | Fuel Type | Cylinder | Valves | Engine: | Models |
| Case | 14.0 | L6 | Cummins NTA 855 | Series BC III | ||
| Cummins | 14.0 | L6 | NH / NT Series | |||
| Cummins | 28.0 | V12 | VT12 / 1710 / V28 | |||
| Komatsu | 14.0 | L6 | 24 | Cummins |
| Weight | 0.200000 |
|---|---|
| Nominal Stem Size | 11MM |
| Head Diameter | 1.80 - 1.89 |
| Length | 7.01 - 7.25 |
| Valve Grooves | Double Groove |
| Interchange | Cummins# 123659 , 145701 , 3024333 , 3086436 , 6406659 , 3803519 , 3803524 Dana# 2111945 Manley# AX1597 Elgin# 00602SEA Federal Mogul# FP145701 , V1622X Martin Wells# 260EX Pep# PS2472 TRW# AS2472 SBI# 00602S |
